3D Installation Animation of iCover® Side Cap and iSlide® Guide for Protechnica

Protechnica commissioned Modii3D to produce a 3D animation showcasing the assembly of two of its patented solutions—the iCover® side cap and the iSlide® entry guide—replacing traditional text-based manuals. The animation serves as an interactive technical tutorial for industry specialists, revealing internally hidden components and demonstrating their step-by-step assembly sequence.

What are the iCover® side cap and iSlide® entry guide shown in the animation?

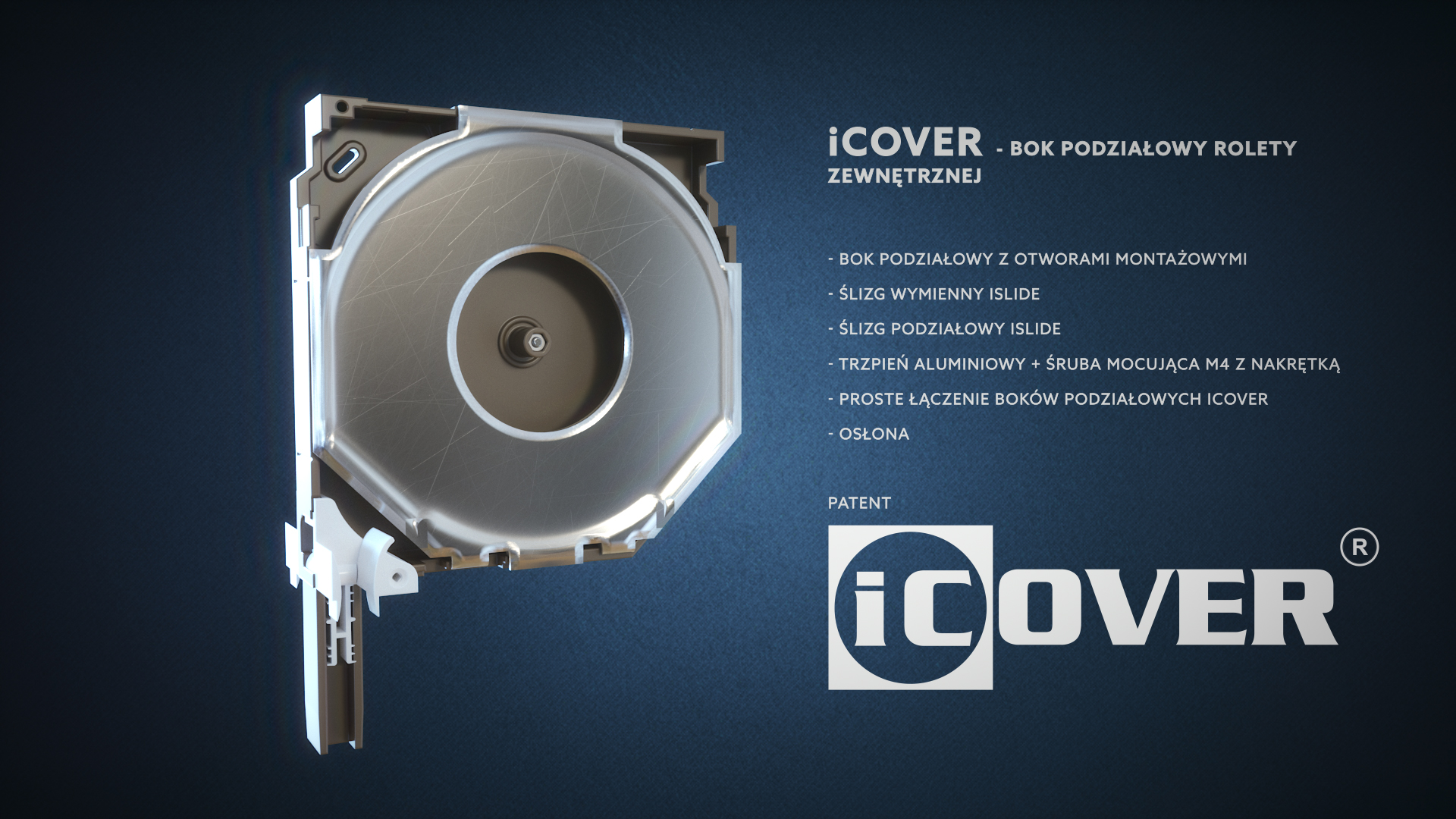

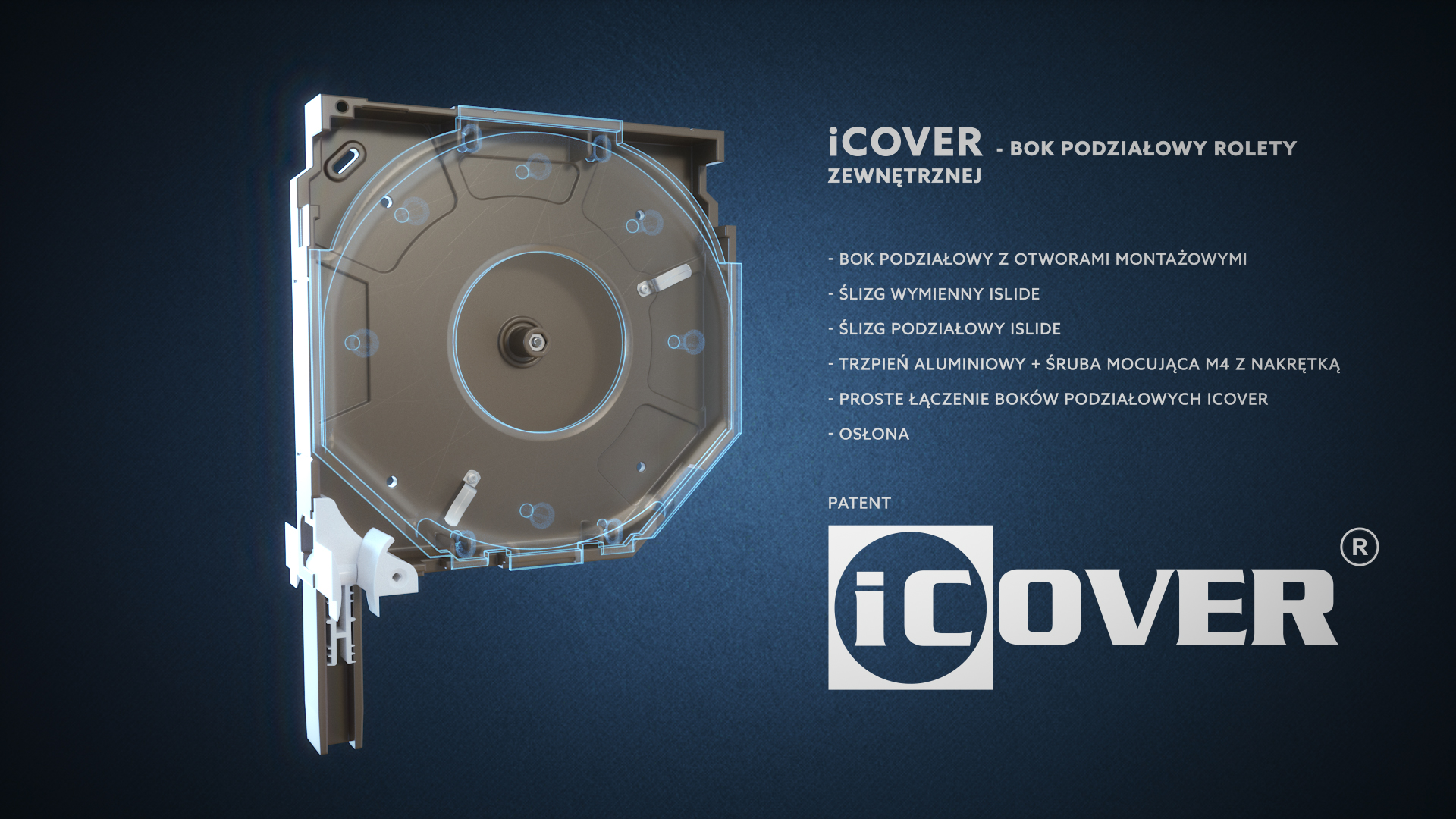

The iCover® side cap (Patent No. P.442310) is a roller shutter box side cap engineered so that a single component supports multiple installation variants: 90° flush-mounted, 45°/90° split, and 45° surface-mounted roller shutters, across 150, 165, and 180 mm aluminum boxes. Consequently, roller shutter manufacturers no longer need to stock a separate side cap for each configuration—directly translating into saved warehouse space and simplified production.

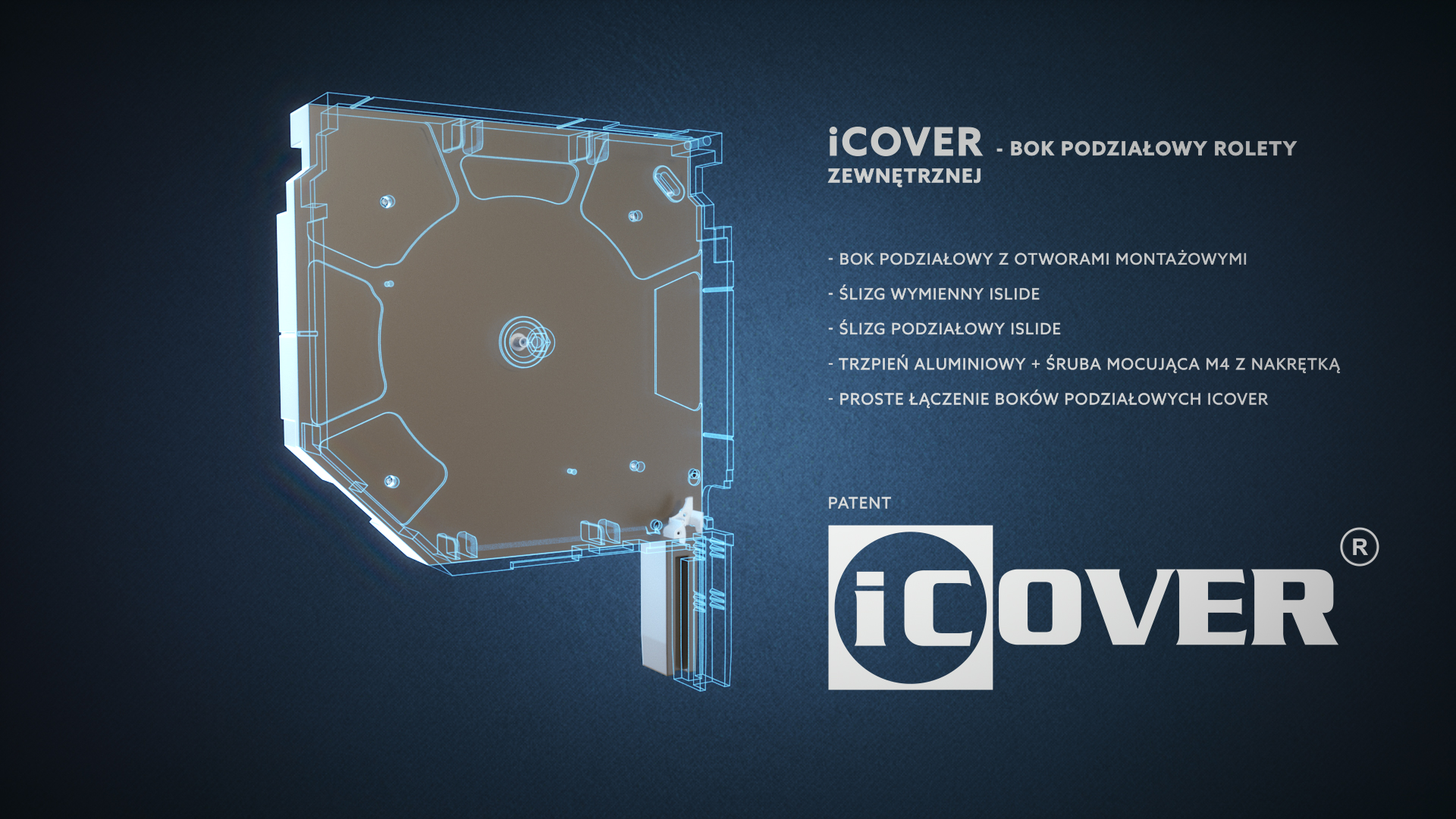

Integrated within the iCover® side cap is the two-piece iSlide® entry guide—a solution enabling rapid replacement of the roller shutter curtain without using buffers. It is precisely this interplay (side cap + integrated guide) that the animation demonstrates step by step.

How is the assembly process depicted in the animation?

The animation showcases the exterior roller shutter side cap, which also functions as an internal bracket tailored to the shutter box. The following sequence is demonstrated:

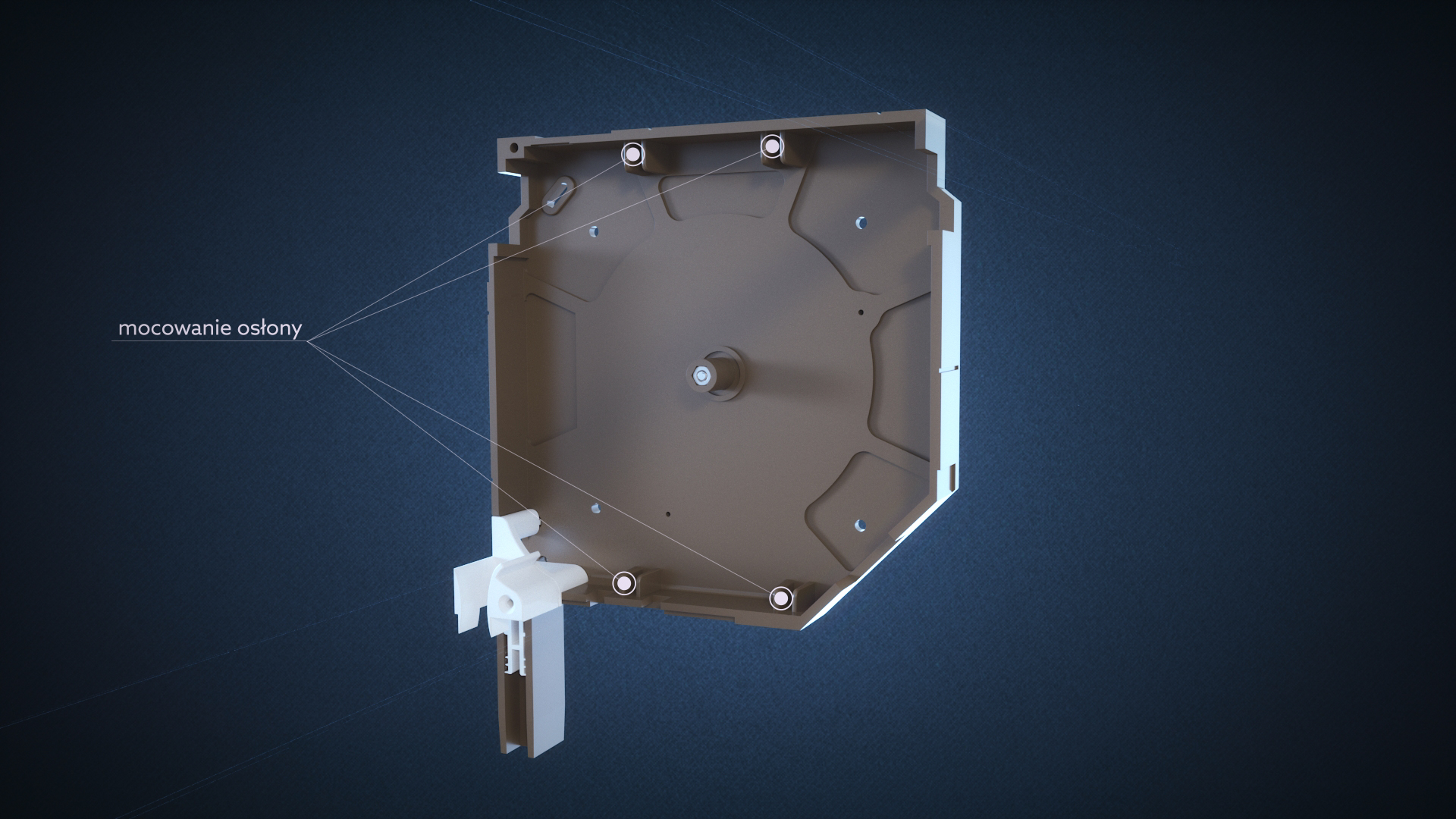

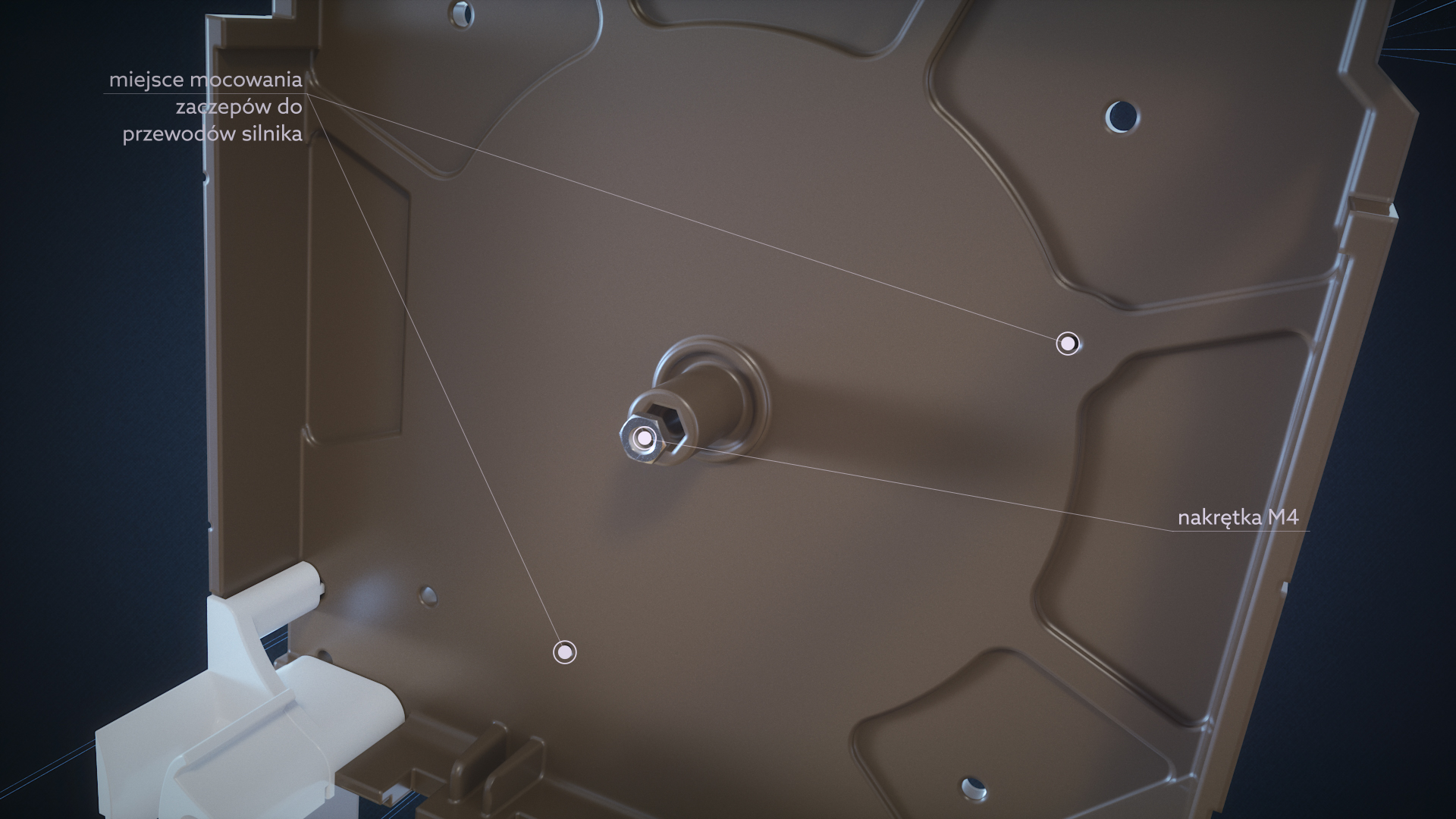

• outer side caps of the housing (iCover® side cap) that enclose the structure

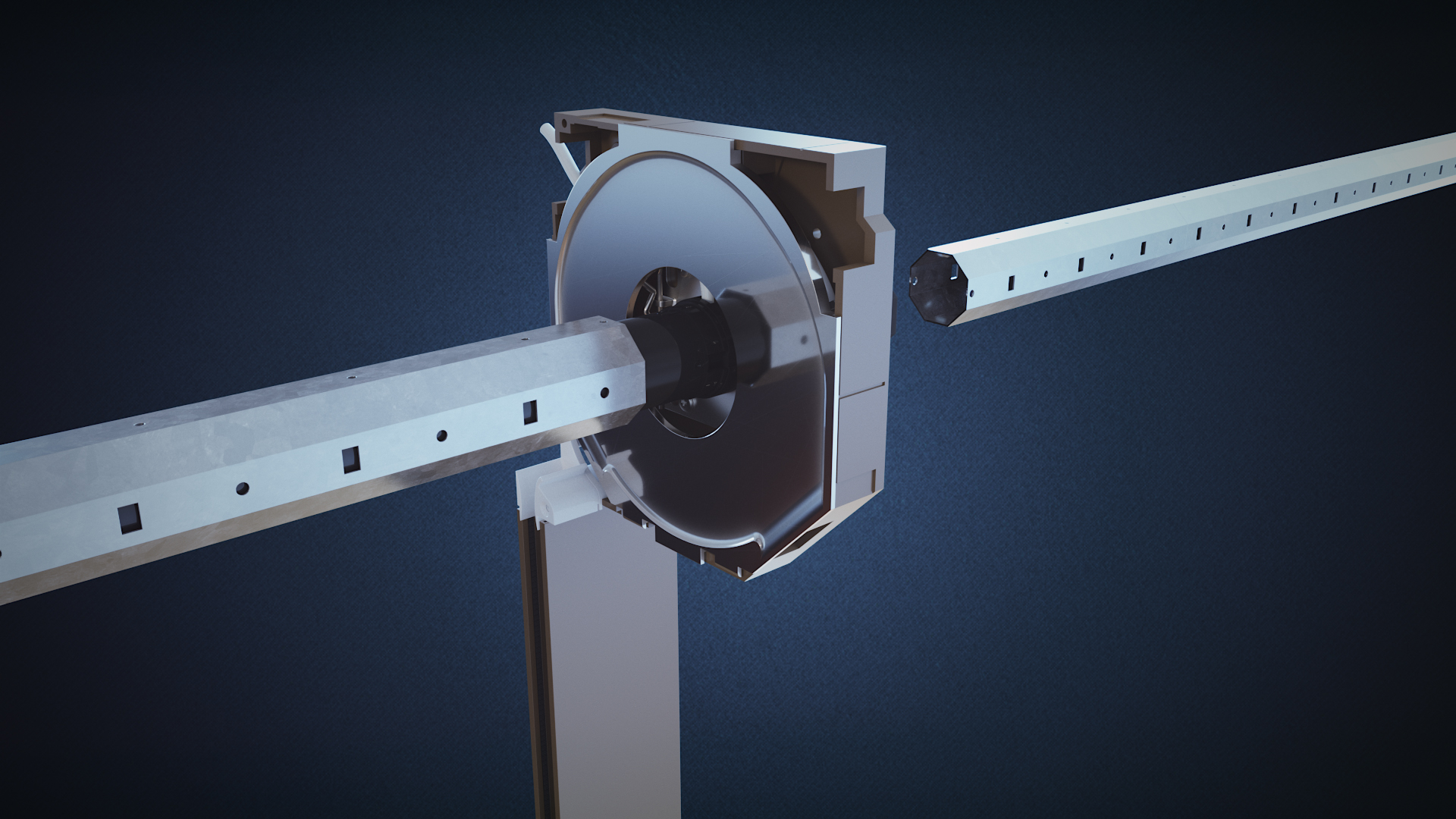

• the winding tube, supported by the outer side caps

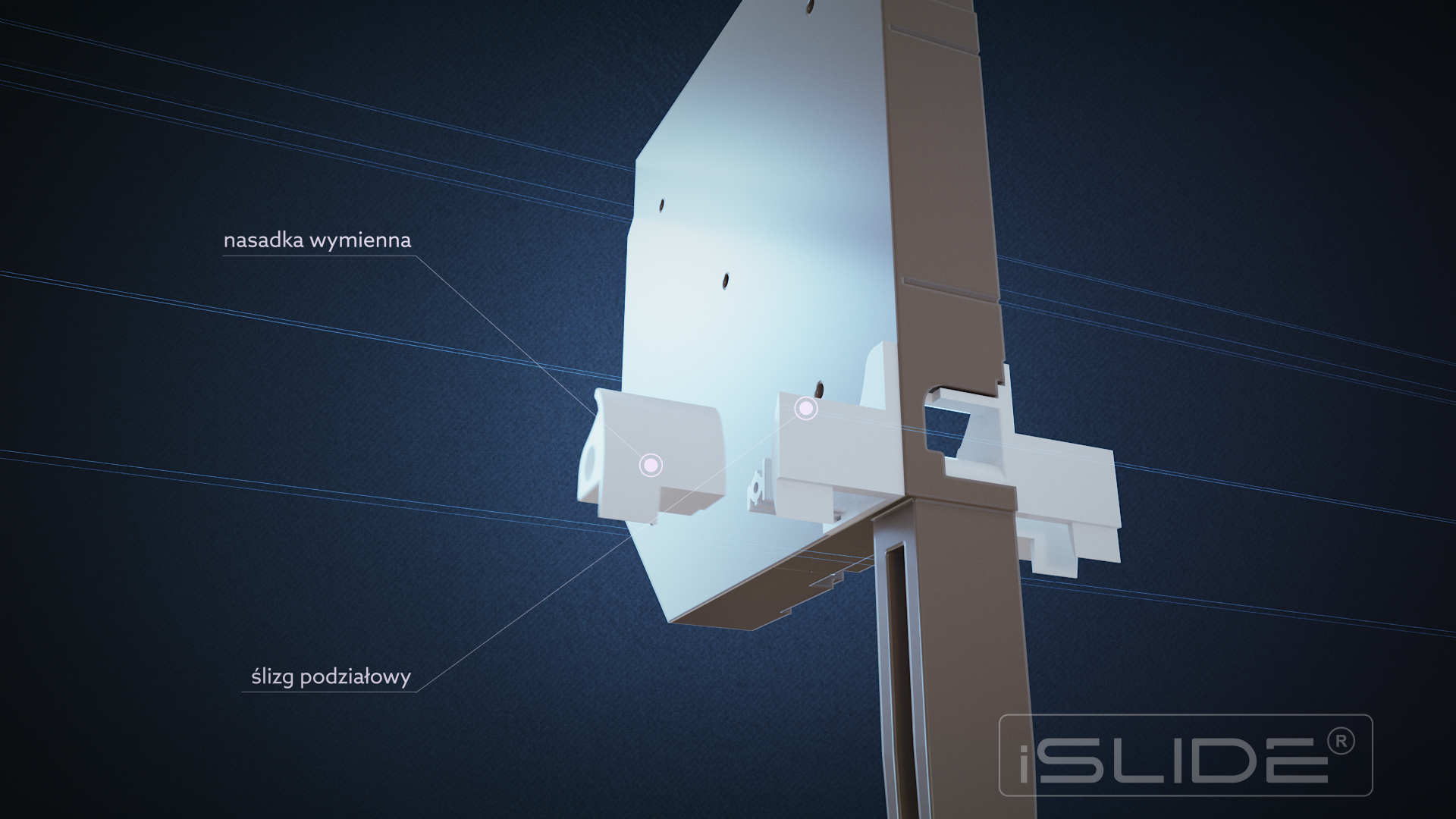

• the iSlide® entry guide integrated into the side cap
• the target positioning of each component relative to the others

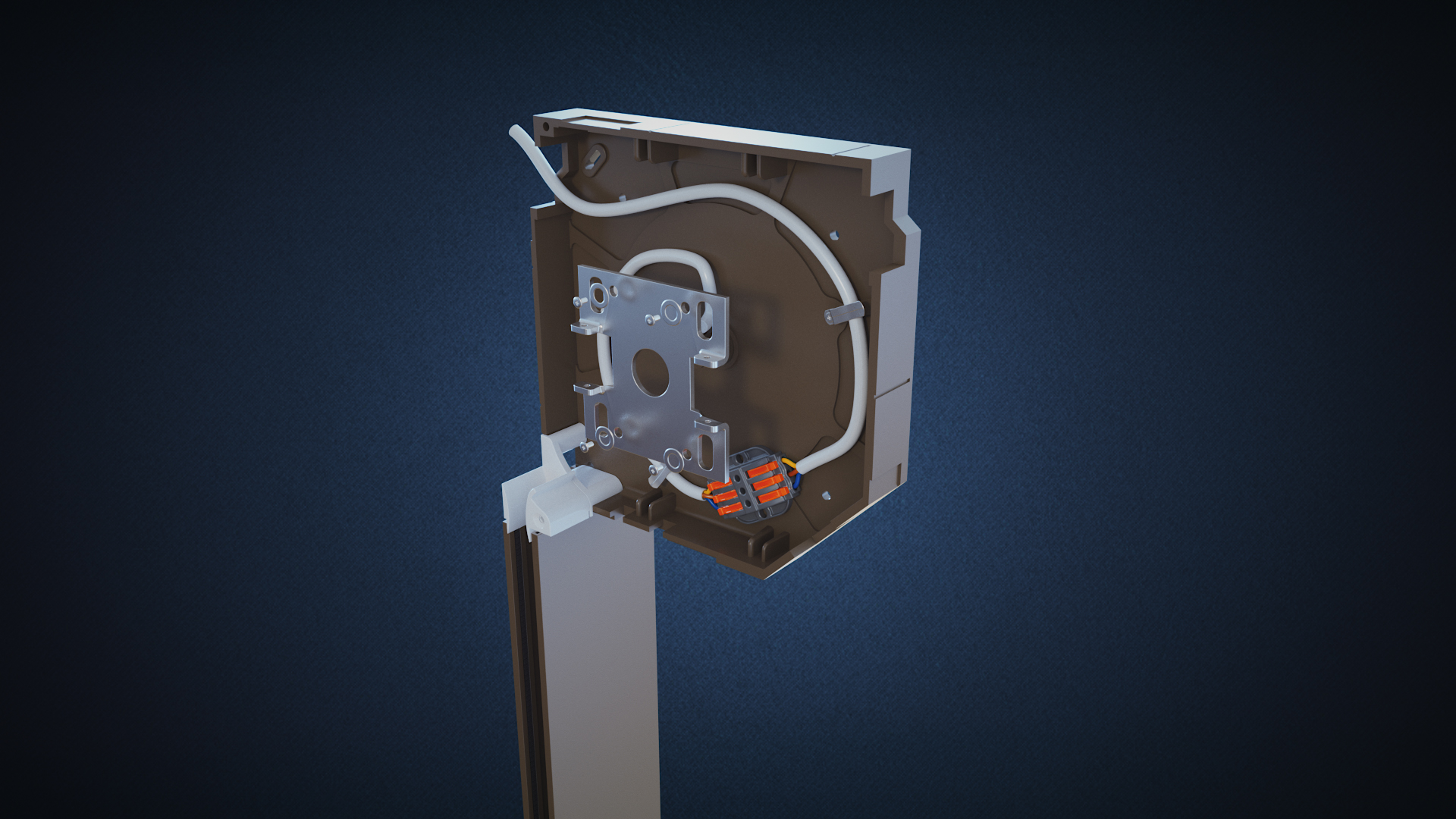

• the final complete assembly of the product

The material was crafted specifically for installation specialists—hence the emphasis on precisely illustrating the assembly sequence and fastening points rather than focusing on pure marketing fluff.

What benefits do the Protechnica solutions featured in the animation offer?

The iCover® side cap reduces inventory variants—a single component replaces several dedicated side caps for different roller shutter installation types. The integrated iSlide® entry guide cuts curtain replacement time from a service crew’s typical several hours down to just a few minutes, eliminating the need for buffers or end-stop plugs. Additionally, when the curtain is fully retracted, the visible bottom rail profile drops from 35 mm to 15 mm, and the entire system operates reliably in temperatures ranging from -45°C to +85°C.

Frequently Asked Questions

What is the iSlide® entry guide in an exterior roller shutter?

iSlide® is a patented, three-piece entry guide compatible with all side caps available on the market. It allows the roller shutter curtain to be replaced in just a few minutes instead of several hours and eliminates the need for buffers or end-stop plugs.

How long does it take to produce a 3D product assembly animation?

From 2 to 8 weeks—the timeline depends on product complexity, the number of components featured, and the availability of source materials (e.g., technical documentation or CAD models).

Which industries benefit most from 3D animations as assembly instructions?

This format works exceptionally well wherever a product consists of multiple components and requires precise assembly—including in industry, automotive, and architecture.

Is the iCover® side cap and iSlide® entry guide assembly animation available in other languages?

Yes, we have also prepared this case study in an English version—a standard practice for projects involving clients operating in international markets.

Is such an animation suitable as training material for installers, rather than just promotional content?

Yes. The material was engineered specifically for installation specialists, making it effective both as a marketing tool and as a training aid for installation crews.
